How To Calculate Duct Elbow Area

Round elbow area. V2 V1 A1A2 Where V is.

Solved Duct Elbow Area In Schedule Autodesk Community Revit Products

If summary functions and custom calculations do not provide the results that you want you can create your own.

How to calculate duct elbow area. How to calculate the areas of Elbow of a rectangular duct in HVAC. The surface area of a torus is. Choose your Family type and define all parameters which will be used.

In ductwork the law of conservation of mass means a duct size can be recalculated for a new air velocity using the simple equation. The Force in Newtons and The Area its pressing on in square. Submit Comment list 0 Label.

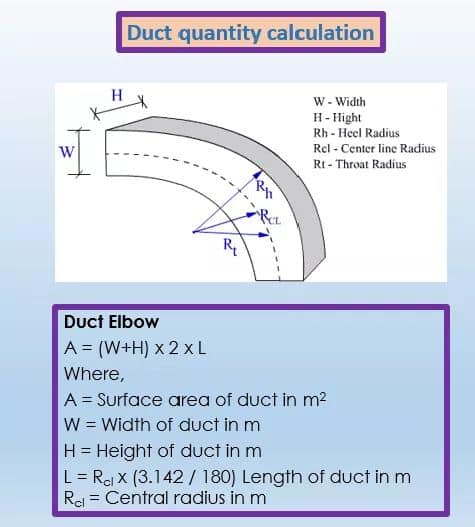

Duct area diagram and area calculation formula. Elbow duct area calculation formula. How do you calculate area in square meter of a duct elbow 45 degree.

C - center angle. Ver01 Dynamo side. 23029 Sign in for comments.

Length rw2 x 314 x degree180 taper formula. To calculate the duct CFM for each room you must first perform an HVAC load calculation for the whole house and for each room using the Manual J method. Calculating Surface Area of the Duct Work in Revit MEPAuxiliary Video How to learn Revit MEPRevit MEP in HindiRevit MEP compact courseSubscribe for morePlea.

Briefly explained how to calculate the duct are and the formullas used for duct area calculation of various duct parts like offset duct reducer duct. App Link Round elbow area. Register now or log in to answer.

Click Calculate to output data. Rectangular elbow area calculation S frac r π c180 times 2ab001745rcl a b - side length. And with formulas in Revit families.

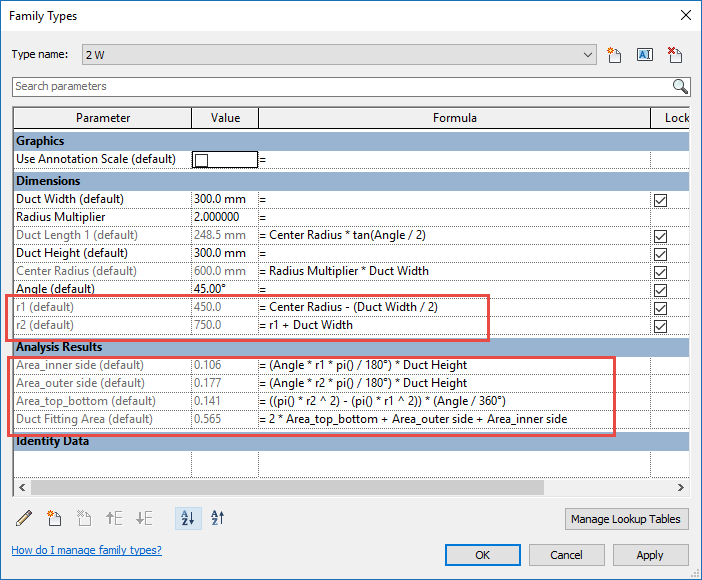

Width height x 2 x length x qty area. Add a shared parameter in elbow family and add this in formula column Length 2 Duct Width Duct Height for elbows. Section from DIN18379 describe way to Duct Fittings Area calculation.

The surface area of a math90omath elbow is equal to one-fourth the area of an equivalent torus. Add a shared parameter in elbow family and add this in formula column Length 2 Duct Width Duct Height for elbows length will be arrived from the. Width height x 2 x length x qty area elbow formula.

To calculate the square meters of a duct you must add the total length of the straight. Radius Bend Duct Revision 20 August 2014 28 Pressure and Force Pressure depends on two things. Calculate Duct Fitting Area and Write to Parameter for Schedulability.

It can be done with Dynamo Script. For the calculation of the elbow first take the length of the. See the figure below.
